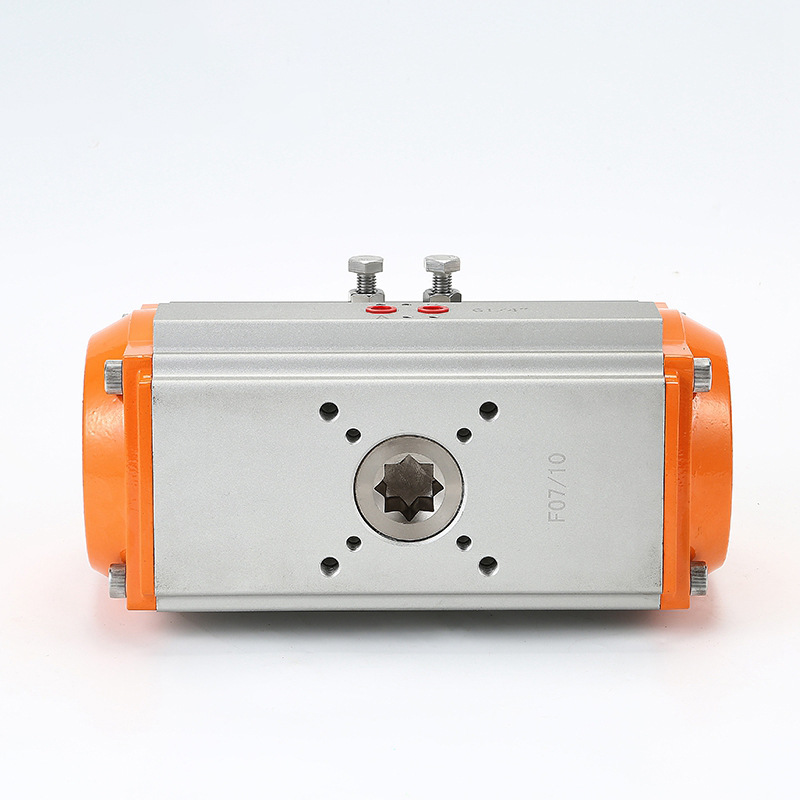

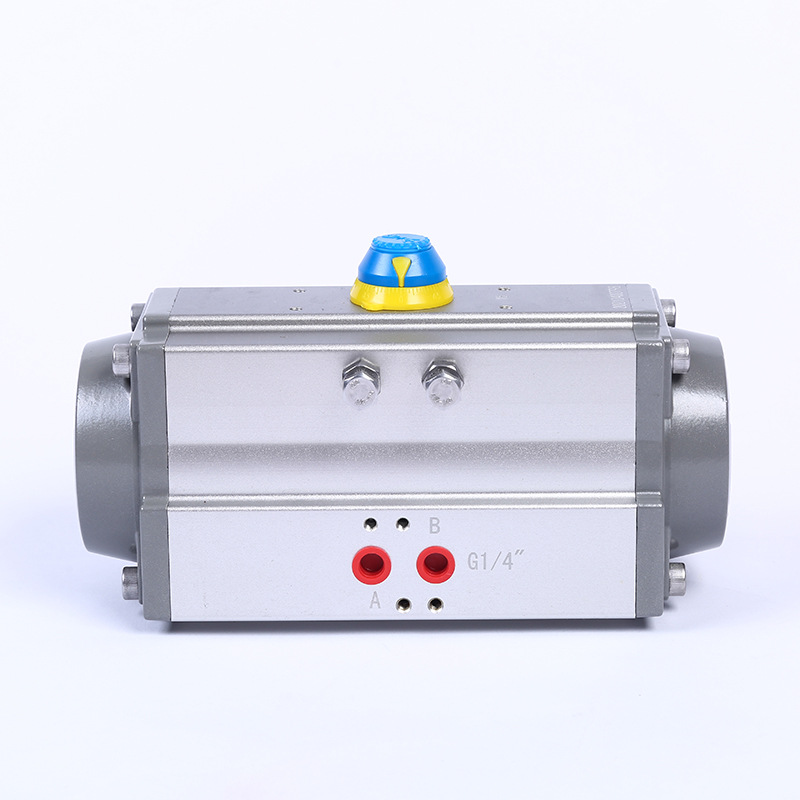

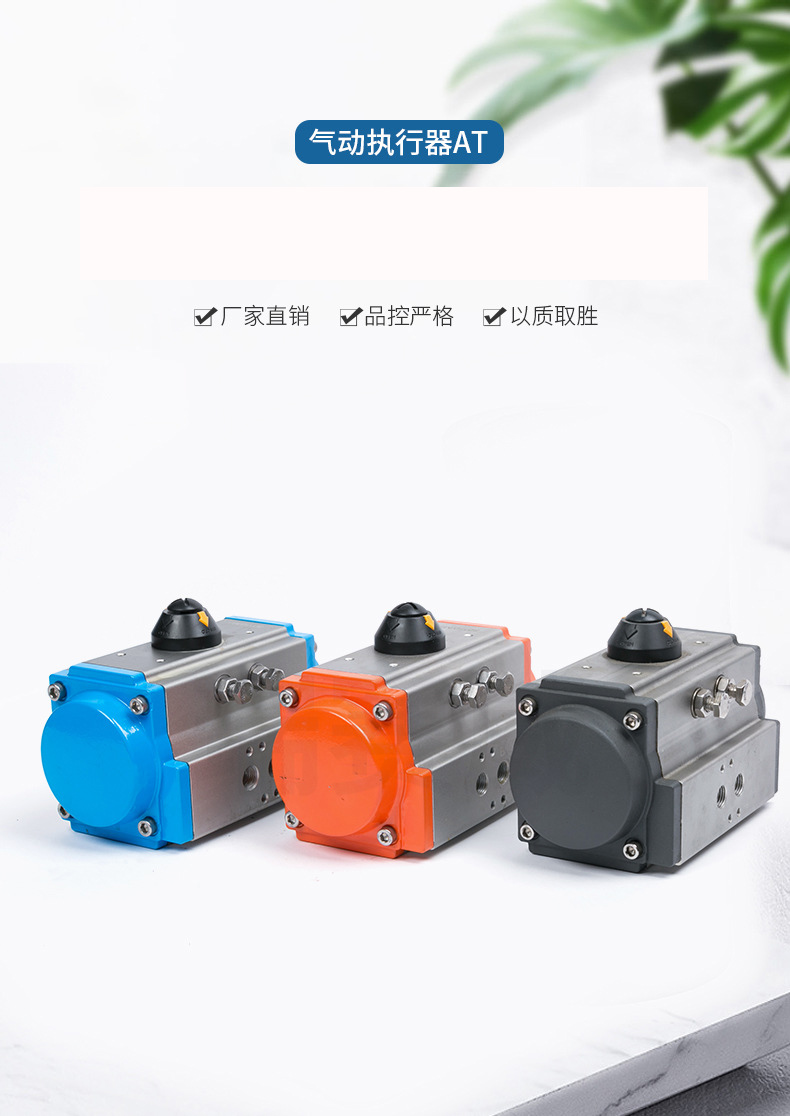

Pneumatic Actuator

A pneumatic actuator is a device that converts input pneumatic pressure signals into a 90-degree rotational motion, outputting torque in a rectangular form. This series of pneumatic actuators features a compact design and high-performance angular stroke operation. They are available in two types: double-acting (air-controlled) and single-acting (spring-return). When combined with angular stroke control valves, they can be used for regulating and switching applications, as well as other rotary motion scenarios such as ball valves and butterfly valves.

Structural Features of Pneumatic Actuators

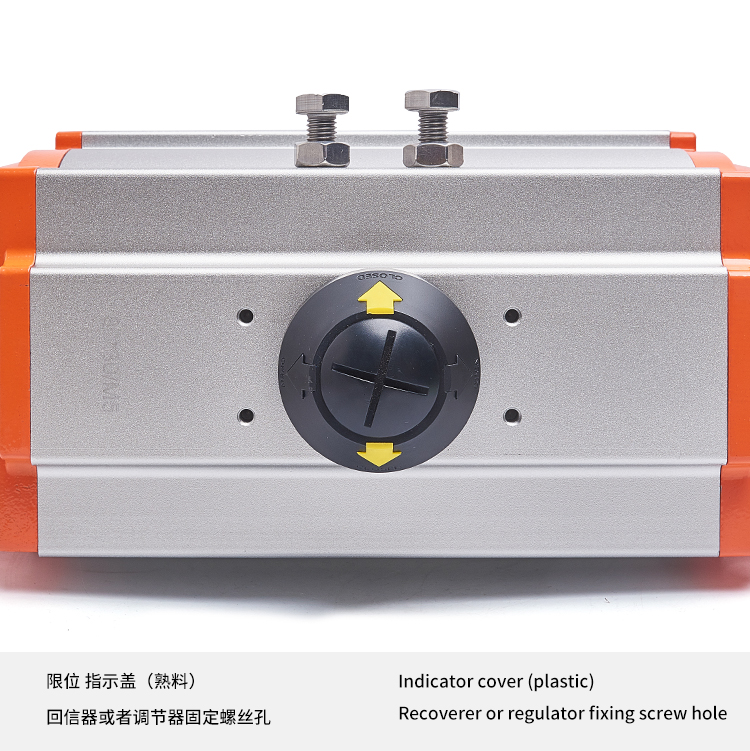

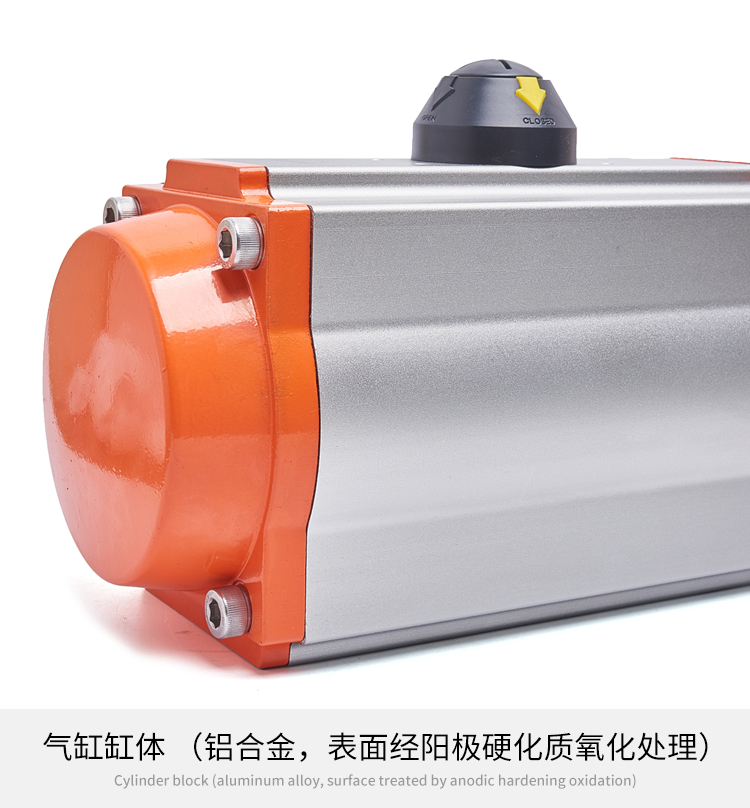

Extruded aluminum alloy cylinder body, hard-anodized for a durable, wear-resistant surface.

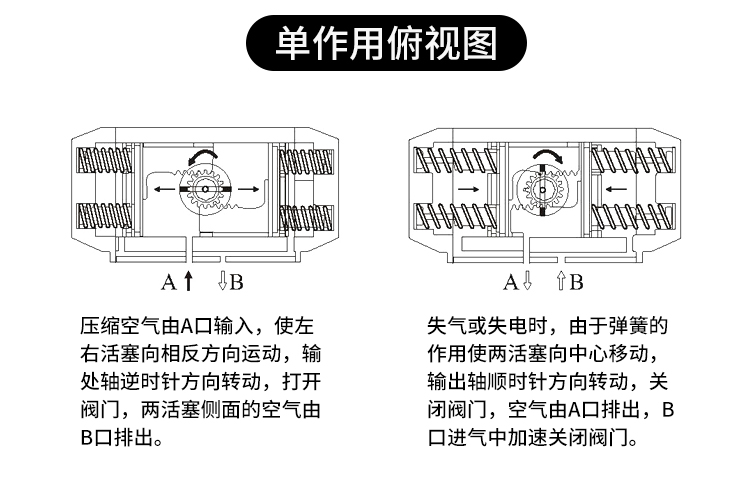

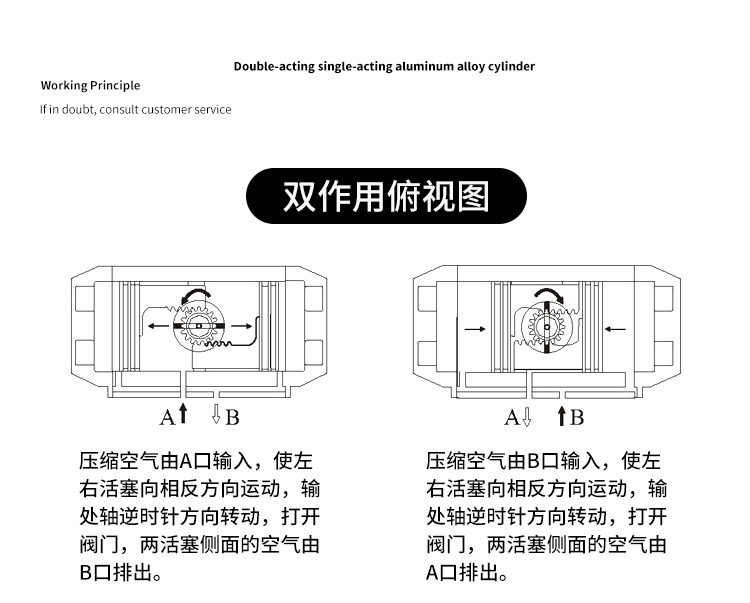

Compact dual-piston gear-and-rack mechanism ensures smooth transmission, symmetrical installation, and constant output torque.

F4 guide rings on moving parts (pistons, racks, and output shafts) reduce friction, extend lifespan, and prevent metal-to-metal contact.

Anti-corrosion treatment applied to cylinders, end covers, output shafts, springs, and fasteners.

Pre-compressed springs in single-acting actuators enable safe and easy disassembly.

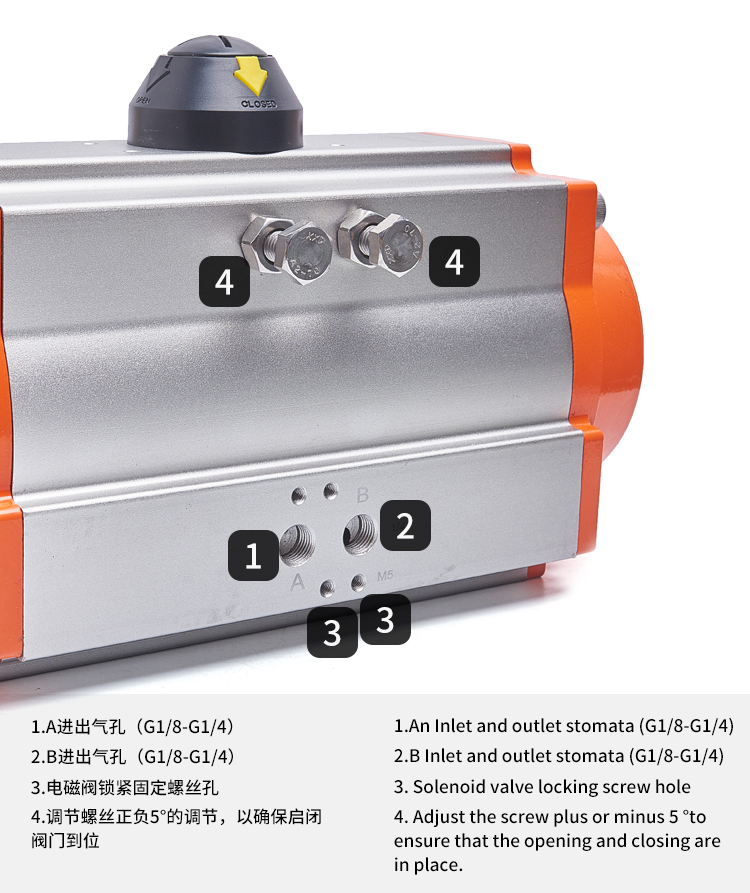

Bidirectional stroke adjustment (±5°) at fully open/closed positions.

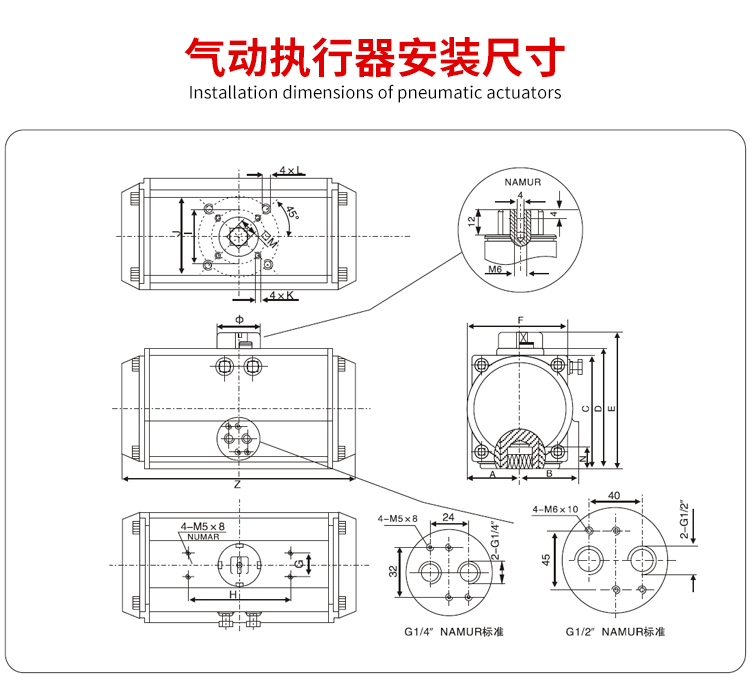

ISO5211, DIN3337, VD1/VDE3845, and NAMUR-compliant mounting interfaces ensure interchangeability and compatibility with accessories like solenoid valves and limit switches.

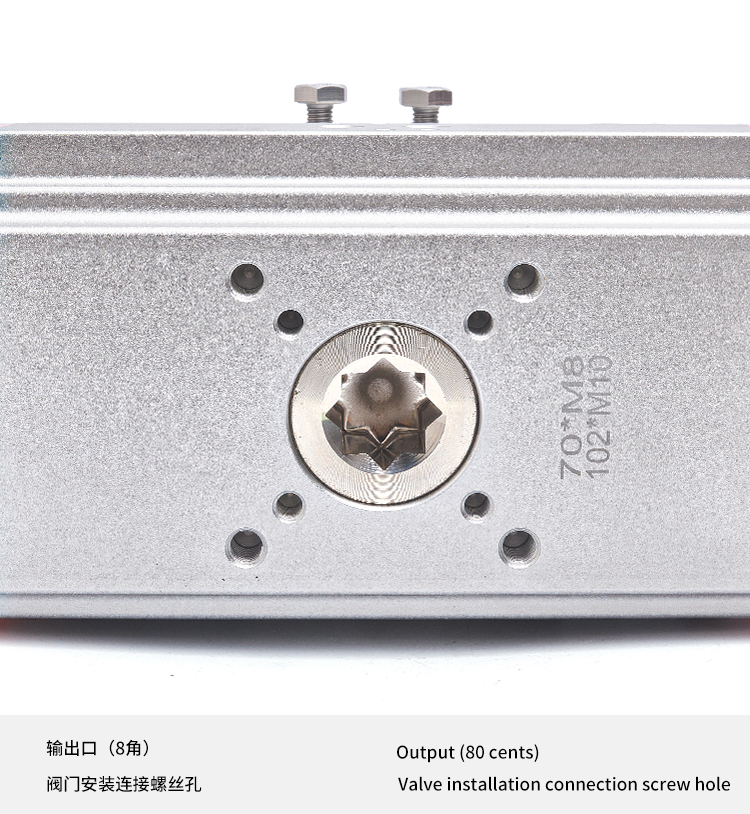

Output shaft connection holes available in multiple shapes (square, keyed, or flat).

Lightweight, waterproof, and sealed design with an aesthetically compact profile.

Temperature variants: Standard (-20°C to +80°C, NBR O-rings), High-Temp (-20°C to +160°C, FKM O-rings), Low-Temp (-40°C to +80°C, VMQ O-rings).

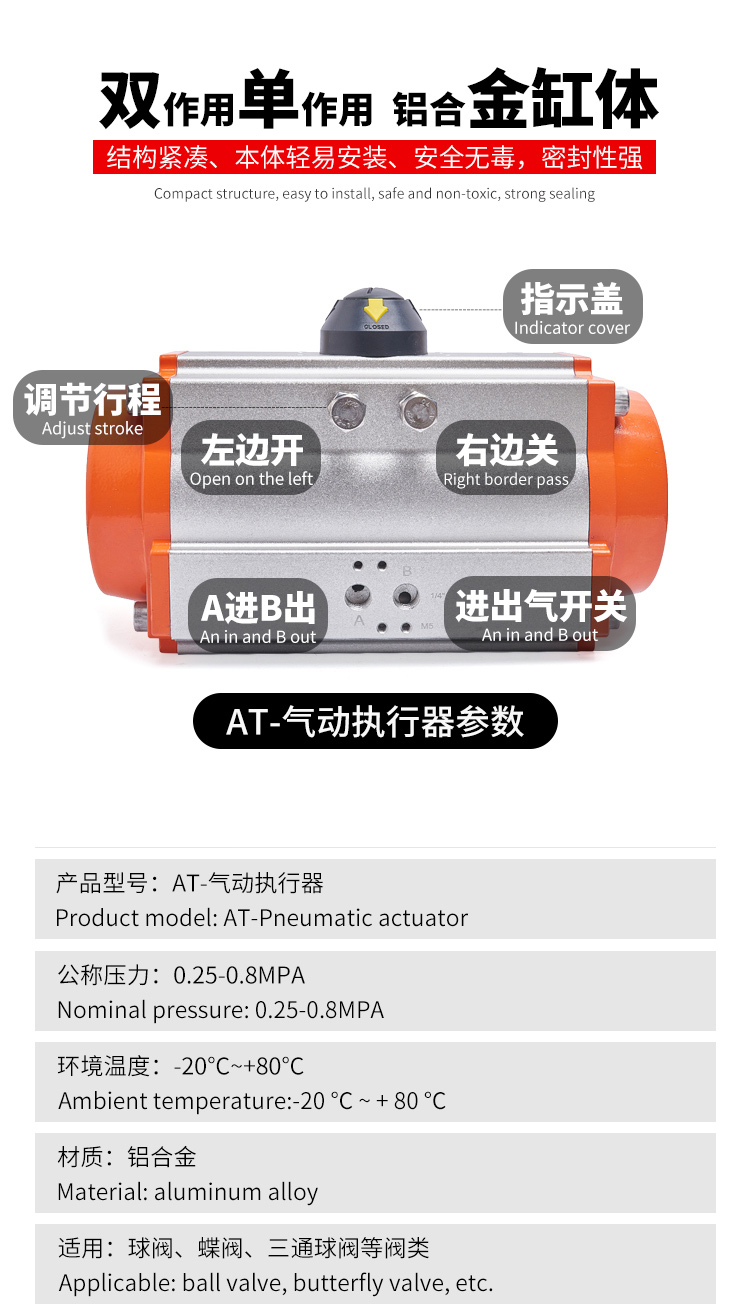

Key Performance Parameters

Medium: Dry, clean, non-corrosive gas.

Operating Pressure:

Double-acting: 2–8 bar

Single-acting: 3–8 bar

Temperature Ranges:

Standard: -20°C to +80°C (NBR O-rings)

High-Temp: -20°C to +160°C (FKM O-rings)

Low-Temp: -40°C to +80°C (VMQ O-rings)

Rotation Angle:

Standard: 90° ±5°

Custom: 0–180°

Output Torque:

Double-acting: 3.1–4,944 N·m

Single-acting: 4.0–1,512 N·m

Port Threads:

AT32–AT40: G1/8"

AT52–AT270: G1/4"

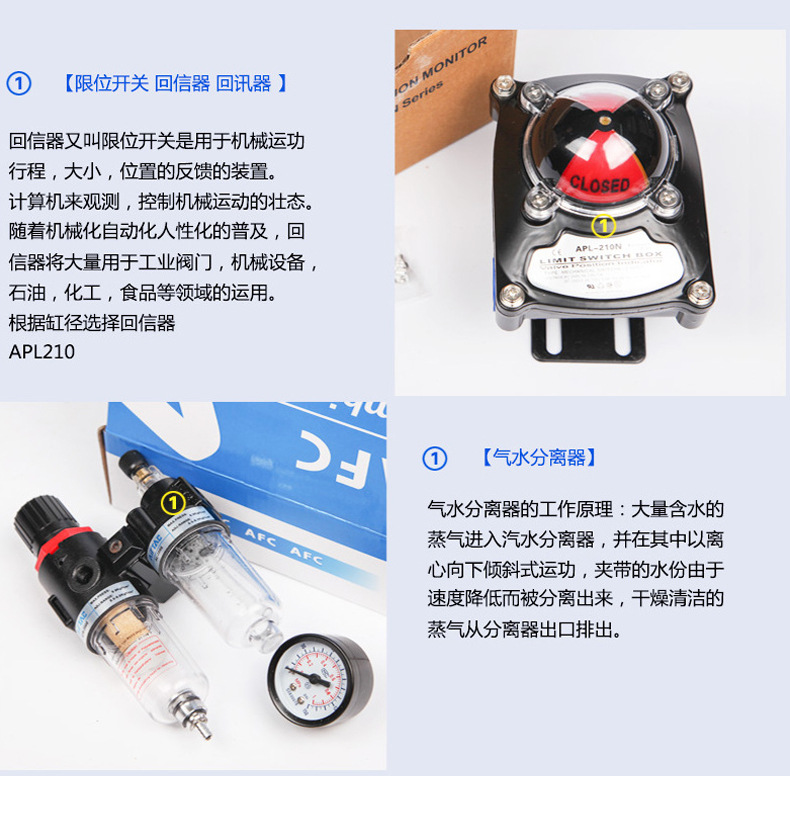

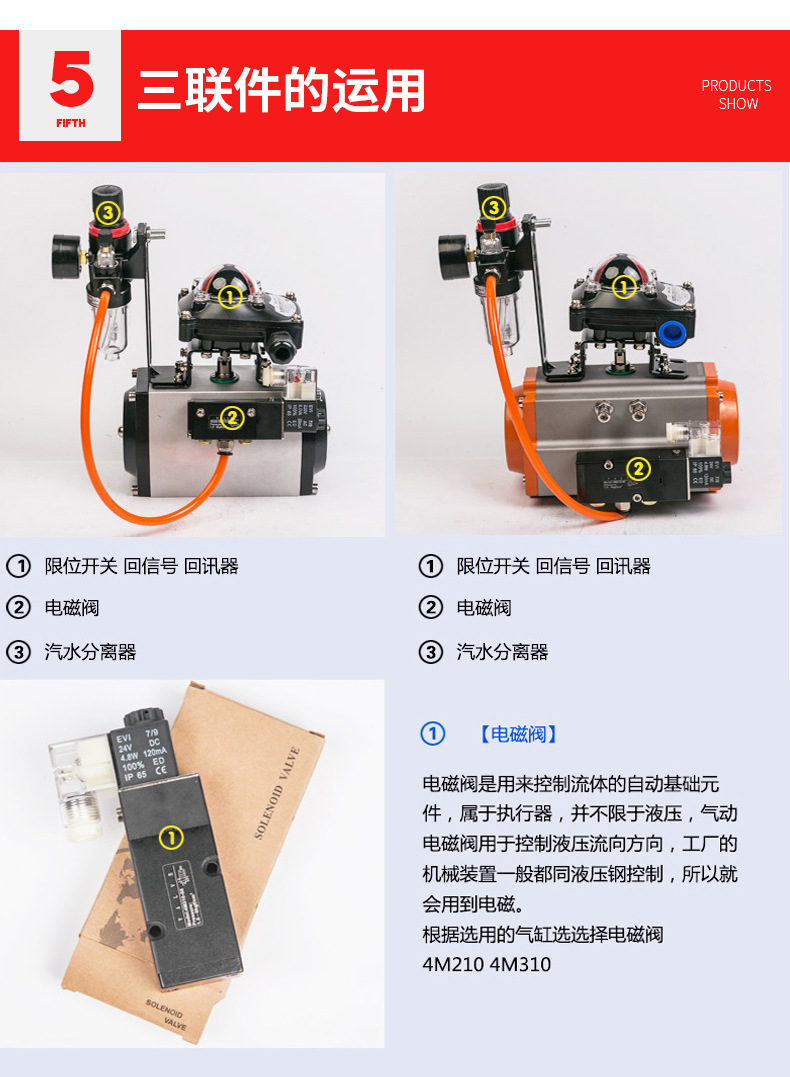

Optional Accessories: Solenoid valves, limit switches, air treatment units, manual overrides, valve positioners.

SR/DA Pneumatic Actuator Models

Double-Acting Series: AT32, AT40, AT52, AT63, AT75, AT83, AT92, AT105, AT125, AT140, AT160, AT190, AT210, AT240, AT270, etc.

Single-Acting Series: ATSR32, ATSR40, ATSR52, ATSR63, ATSR75, ATSR83, ATSR92, ATSR105, ATSR125, ATSR140, ATSR160, ATSR190, ATSR210, ATSR240, ATSR270, etc.

New-Generation Valve Pneumatic Actuator Keywords

Valve actuator, pneumatic actuator, pneumatic valve actuator, pneumatic valve drive, pneumatic mechanism, air cylinder, pneumatic head, double-acting actuator, single-acting actuator, spring-return actuator, normally open/closed actuator, aluminum/stainless steel actuator, piston/fork/gear-chain actuator, angular stroke actuator, Aero2/Italian-style actuator, import-alternative actuator.

Selection Guidelines (Reference)

Torque Calculation: Determine the required torque for valve operation. Apply safety factors based on medium:

Clean/lubricated fluids: +20%

Steam/non-lubricated liquids: +25%

Non-lubricated slurry: +40%

Non-lubricated particulates: +80%

Double-Acting: Match calculated torque and air pressure to the torque table for AT DA models.

Single-Acting: Use the spring return torque (endpoint torque > calculated torque) to select AT SR models.

Example:

Required torque: 100 N·m (with 40% safety → 140 N·m).

For 4.0 bar air pressure, select AT140SR (8 springs, endpoint torque 165 N·m).

Standard Pneumatic Actuator Specifications

Double-Acting: AT-32, AT-52, AT-63, AT-75, AT-83, AT-92, AT-105, AT-125, AT-140, AT-160, AT-190, AT-210, AT-240, AT-270, AT-300.

Single-Acting: ATSR-32, ATSR-52, ATSR-63, ATSR-75, ATSR-83, ATSR-92, ATSR-105, ATSR-125, ATSR-140, ATSR-160, ATSR-190, ATSR-210, ATSR-240, ATSR-270, ATSR-300.

Alternative Series: ZT050D–ZT400D (double-acting), ZT050S–ZT400S (single-acting), DR/SC00015–DR/SC05000.

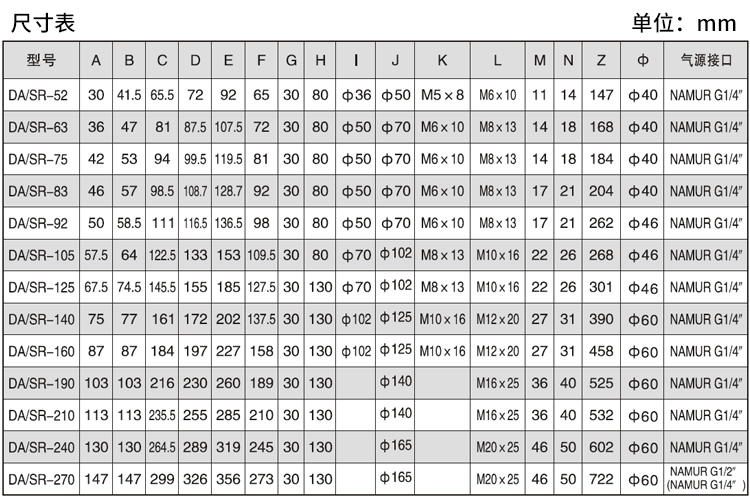

For detailed specifications, dimensions, torque charts, materials, pricing, or technical support, contact us directly or consult online.

气动执行器是将输入的气压信号转换成90度，再以扭转矩形形式输出的执行机构。该系列气动执行器是一种外型小、性能高的的角行程执行结构，分为双作用气控型和单作用气控型两种，与角行程型控制阀组合可用于调节和开关的场合，也可用于其他回转运动的场合，如球阀，蝶阀等。

气动执行器结构特点
1)、挤压成型的铝合金缸体，经硬质氧化处理，表面质地坚硬，耐磨性强。
2)、紧湊的双活塞齿轮、齿条式结构，啮合**，传动平稳，安装位置对称，输出扭矩恒定。
3)、活塞、齿条和输出轴的活动部位均安装F4导向环，实现低摩擦，长寿命，避免金属间的接触。
4)、缸体、端盖、输出轴、弹簧、紧固件等均经防腐处理。
5)、单气控型执行器的弹簧经预压后安装，可安全、方便的拆卸和组装。
6)、气动执行器在全开和全关位置均可进行0度或90度正负5度的双向行程调节。
7)、安装连接尺寸符合ISO5211、DIN3337和VD1/VDE3845以及NUMAR标准，确保气动执行器间的互换性和方便安装电磁阀、限位开关等附件。
8)、输出轴的安装连接孔有多种形状(四方孔、轴键孔、扁孔)可供选择
9)、外形美观而精巧，重量轻，具有防水密封结构。
10)、有常温型、高温型、低温型。在常温工作条件下使用丁腈橡胶，在高温或低温时采用氟橡胶或硅橡胶

主要性能参数：
工作介质 干燥、清洁不含腐蚀性气体
工作气源压力 双作用式：2-8bar
单作用式：3-8bar
工作温度 常温型：-20°C~+80°C （丁腈橡胶O型圈）
高温型：-20°C~+160°C（氟橡胶O型圈）
低温型：-40°C~+80°C（硅橡胶O型圈）
回转角度 标准型：90°±5° 非标准型0-180°
输出扭矩 双作用型：3.1~4944N.m 单作用型：4.0~1512N.m
接口螺纹 AT32-AT40 G1/8" AT52-AT270 G1/4"
选配附件：电磁阀，限位开关，气源处理元件，手动操作器及阀门定位器等

SR/DA气动执行器主要型号：
双作用系列：AT32，AT40，AT52，AT63，AT75，AT83，AT92，AT105，AT125，AT140，AT160，AT190，AT210，AT240，AT270等。
单作用系列：AT32，AT40，AT52，AT63，AT75，AT83，AT92，AT105，AT125，AT140，AT160，AT190，AT210，AT240，AT270等。

新一代阀门气动执行器别名叫法（气动执行器关键字）：
阀门执行器,气动执行器,阀门气动执行器,气动阀门执行器,气动阀门驱动装置,气动执行机构,气缸,气动头,双作用气动执行器,单作用气动执行器,弹簧复位型阀门气动执行器,常开型气动执行器,常闭型气动执行器,铝合金气动执行器,不锈钢气动执行器,活塞式气动执行器,拨叉式气动执行器,齿轮链条式气动执行器,角行程阀门气动执行器,aero2爱诺型气动执行器,意大利式气动执行器,可替代进口型气动执行器

系列阀门气动执行器其他说明：
欲了解JAT气动执行器性能参数、AT气动执行器连接尺寸、AT气动执行器输出扭矩、AT气动执行器材质说明、AT气动执行器选型说明、AT气动执行器安装调试及维护说明、AT气动执行器价格等信息，请致电本公司或者在线咨询。

气动执行器型号选配说明（供参考）：
首先确定阀门启、闭时所需要的扭矩，在正常使用条件下，推荐安全系数为15～20%。再根据阀门使用的流体介质增加安全值。对清洁、润滑介质增加20%安全值；对水蒸气或非润滑液体介质增加25%安全值；非润滑的浆料液体介质增加40%安全值；非润滑的颗粒介质增加80%安全值。

选择双作用气控执行器时，根据上计算的扭矩值及使用气源压力查找双气控执行器的扭矩表，就可得到准确AT DA型号。

选择单作用气控执行器时，根据上述计算的扭矩值及使用气源压力，在弹簧复位栏内查找终点时扭矩(此扭矩要大于上述计算的扭矩)，就可得到准确的AT SR型号。
例如：气源压力为0.4Mpa（4.0Bar），经上述计算需要控制一个扭矩为100N.m的阀门，首先增加40%安全值等于140N.m，按表查找弹簧复位终点相近扭矩165N.m，再向左查看执行器型号为AT140SR型(共装8只弹簧)。
说明：SR单气控型输出扭矩表中，弹簧复位“终点”扭矩即为关闭阀门的扭矩，弹簧复位“开始”扭矩即为打开阀门时的扭矩。相对应的气源压力开始的扭矩即关闭阀门状态的扭矩，气源压力终点扭矩即为打开阀门的扭矩。

1-气动头-气动执行器标准：阀门双作用气动执行器规格|   AT-32,AT-52,AT-63,AT-75,AT-83,AT-92,AT-105,AT-125,AT-140,AT-160,AT-190,AT-210,AT-240,AT-270,AT-300

 2-气动头-气动执行器标准：阀门单作用气动执行器规格|   ATSR-32,ATSR-52,ATSR-63,ATSR-75,ATSR-83,ATSR-92,ATSR-105,ATSR-125,ATSR-140,ATSR-160,ATSR-190,ATSR-210,ATSR-240,ATSR-270,ATSR-300

 3-气动头-气动执行器标准：阀门双作用气动执行器规格  AT-32,AT-52,AT-63,AT-75,AT-88,AT-100,AT-115,AT-125,AT-145,AT-160,AT-100,AT-200,AT-240,AT-270,AT-300,AT-350,AT-400

 4-气动头-气动执行器标准：阀门双作用气动执行器规格|  ZT050D,ZT063D,ZT075D,ZT088D,ZT100D,ZT125D,ZT145D,ZT160D,ZT180D,ZT200D,ZT240D,ZT270D,ZT300D,ZT350D,ZT400D

 5-气动头-气动执行器标准：阀门单作用气动执行器规格|  ZT050S,ZT063S,ZT075S,ZT088S,ZT100S,ZT125S,ZT145S,ZT160S,ZT180S,ZT200S,ZT240S,ZT270S,ZT300S,ZT350S,ZT400S

6-气动头-气动执行器标准：阀门双作用气动执行器规格  DR/SC00015，DR/SC00030，DR/SC00060，DR/SC00100，DR/SC00150，DR/SC00220，DR/SC00300，DR/SC00450，DR/SC00600，DR/SC00900，DR/SC01200，DR/SC02000，DR/SC03000，DR/SC05000，
