Three stage pneumatic actuator

Filling industry, three-stage pneumatic actuator 0 °, 45 °, 90 °

[Product Introduction]

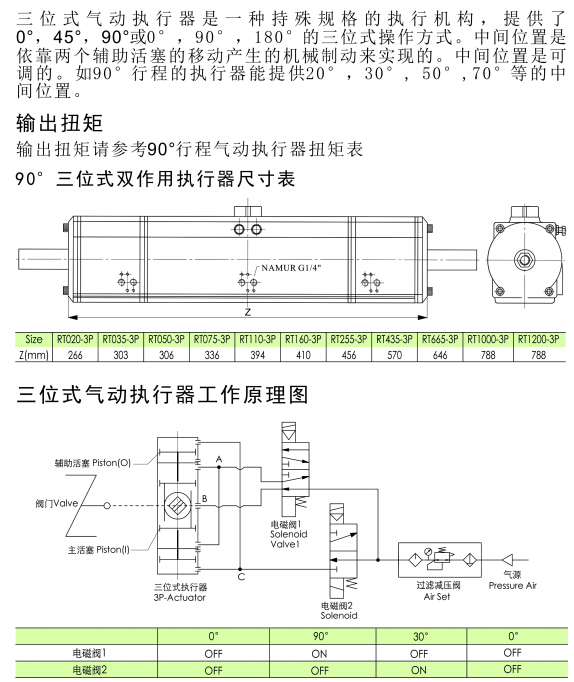

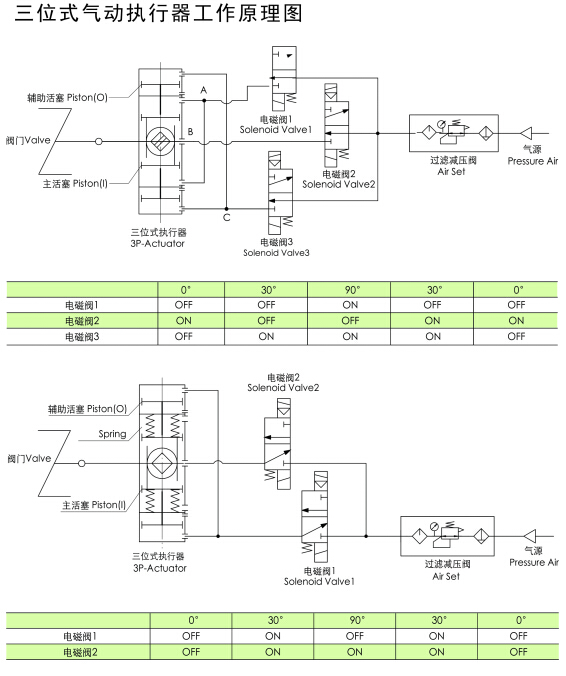

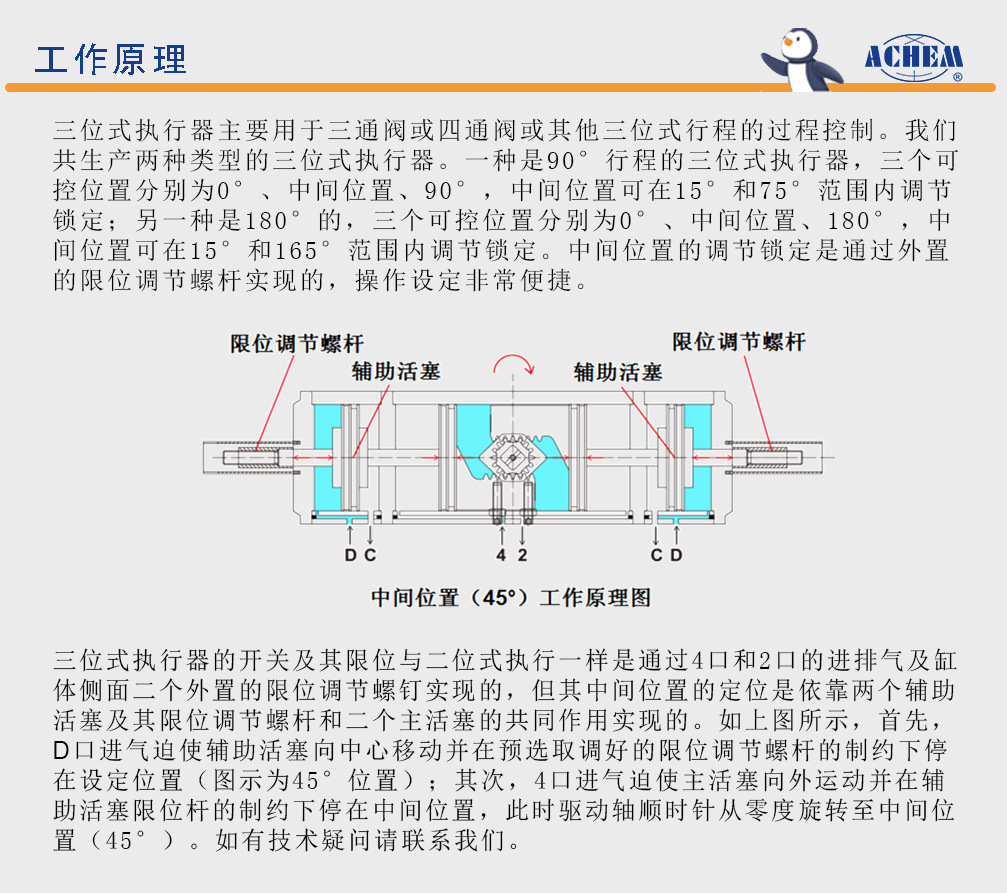

Pneumatic actuator, three-stage pneumatic actuator, three-stage FLO pneumatic actuator is a special specification actuator that provides a three position operation mode of 0 °, 45 °, 90 ° or 0 °, 90 °, 180 °. The middle position is achieved through mechanical braking generated by the movement of two auxiliary pistons. The middle position is adjustable, for example, a 90 ° stroke actuator can provide middle positions of 20 °, 30 °, 50 °, 70 °, etc.

Filling industry, three-stage pneumatic actuator 0 °, 45 °, 90 °

[Product Features]

The size of the air source interface and top mounting hole complies with VDI/VDE3845 NAMUR standard

The size of the bottom mounting hole complies with IS05211 and DIN3337 standards

Structural form: Three position structure

Journey: 90 °, 120 °, 180 °

Form of action: single action, double action

Always adjustable ± 5 °

Can be locked at any position

Suitable temperature for seals:

NT (-20 ℃~+80 ℃): Ethylene propylene diene monomer (EPDM)

LT (-40 ℃~+80 ℃): Silicone rubber

HT (-15 ℃~+150 ℃): Fluororubber

High pressure resistance: 10 bar

Cylinder material: aluminum alloy+anodized, aluminum alloy coated with plastic

Output shaft material: 45 # quenched and tempered+electroplated

Piston material: aluminum alloy+anodized

Compatible valves: ball valve, butterfly valve, plug valve, eccentric rotary valve, etc

After sales service

Customers who purchase our products are only the beginning of their interaction with our company, and the beginning of the work of our after-sales service department. Throughout the entire stage of using our products, our after-sales service department will provide thoughtful, enthusiastic, meticulous, and timely service, allowing customers to easily and freely use our valve products, truly experiencing the convenience we bring to customers and the profit value we create for them, and allowing customers to buy more reassuring products..

In the Greater China region, more than ten series of products have been formed, including actuators, reducers, ball valves, butterfly valves, gate valves, check valves, etc., and have passed ISO, CE, GB and other product quality standard system certifications. Valve products have been widely used in industries such as environmental protection, food, chemical, metallurgical, hydropower, and machinery. Sales and after-sales service cover 32 provinces and cities in China, and product quality and after-sales service have been consistently praised by users.

Three stage pneumatic actuator

1. Product Introduction

1. Pneumatic head pneumatic actuator standard: Valve double acting pneumatic actuator specifications | AT-32, AT-52, AT-63, AT-75, AT-83, AT-92, AT-105, AT-125, AT-140, AT-160, AT-190, AT-210, AT-240, AT-270, AT-300

2- Pneumatic head pneumatic actuator standard: Valve single acting pneumatic actuator specification| ATSR-32,ATSR-52,ATSR-63,ATSR-75,ATSR-83,ATSR-92,ATSR-105,ATSR-125,ATSR-140,ATSR-160,ATSR-190,ATSR-210,ATSR-240,ATSR-270,ATSR-300

3- Pneumatic head pneumatic actuator standard: Valve double acting pneumatic actuator specification AT-32,AT-52,AT-63,AT-75,AT-88,AT-100,AT-115,AT-125,AT-145,AT-160,AT-100,AT-200,AT-240,AT-270,AT-300,AT-350,AT-400

4- Pneumatic head pneumatic actuator standard: Valve double acting pneumatic actuator specification| ZT050D,ZT063D,ZT075D,ZT088D,ZT100D,ZT125D,ZT145D,ZT160D,ZT180D,ZT200D,ZT240D,ZT270D,ZT300D,ZT350D,ZT400D

5- Pneumatic head - Pneumatic actuator standard: Valve single acting pneumatic actuator specification| ZT050S,ZT063S,ZT075S,ZT088S,ZT100S,ZT125S,ZT145S,ZT160S,ZT180S,ZT200S,ZT240S,ZT270S,ZT300S,ZT350S,ZT400S

6- Pneumatic head - Pneumatic actuator standard: Valve double acting pneumatic actuator specification DR/SC00015，DR/SC00030，DR/SC00060，DR/SC00100，DR/SC00150，DR/SC00220，DR/SC00300，DR/SC00450，DR/SC00600，DR/SC00900，DR/SC01200，DR/SC02000，DR/SC03000，DR/SC05000，
